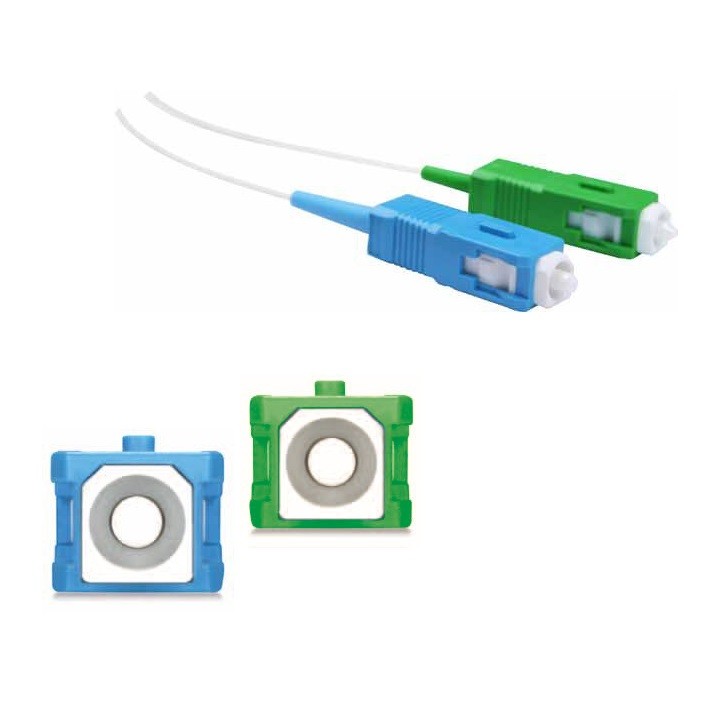

Pigtail SC Single Mode

Description

The Pigtail SC is assembled with 9/125µm Single mode fiber with PVC jacket. It has a Push-Pull type fixing system which will allow an adequate coupling to the different fiber optic devices. Optronics SC Pigtails have been developed to ensure the performance of an optical network at the highest level.



For the elaboration of Pigtail, an SC connector with optical fiber adjusted to 900µm is used. Optronics SC Pigtails offer quality, low insertion loss, adequate return loss, superior performance and data throughput.



(Color configuration applies only to packages of 6 and 12 Pigtails).
