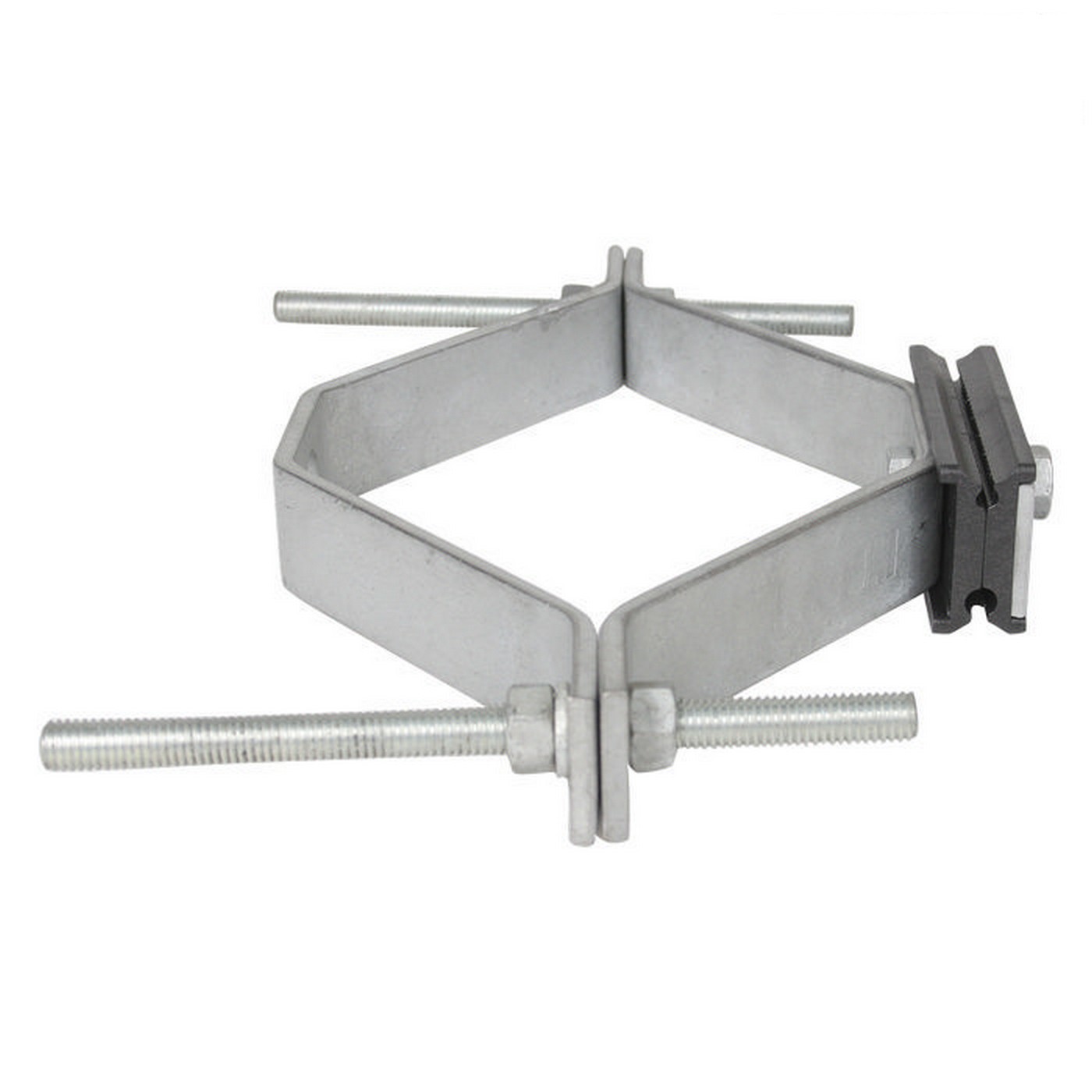

MESSENGER SUSPENSION POLE BAND CLAMP
- Double-side clamp design For attaching to wooden or concrete poles UV-resistant thermoplastic jaws
- Requires no special tools to install Ø Messenger: • Small groove: 5 to 6mm • Large groove: 8 to 9mm
- Body material type - 1/4" x 1/2" commercial structural steel, builtin mechanical galvanized
Description
This Pole Band Clamp enables fixed suspension applications for messenger steel or figure 8 fiber optic cables in outdoor aerial FTTH line deployments. It is built-in galvanized steel that protects against corrosion and UV rays. It adjusts easily to fit most pole sizes and does not require the use/need of any special tools. Available in three different sizes: 4, 6, or 8 inches. Choose one whose diameter matches your post.
Kit contents:
-2 Pole band clamps
-2 ½” x 20 cm fully threaded stud
-1 Messenger suspension clamp (built-in 50% ABS plastic and 50% polycarbonate)
-1 ½” x 2” carriage bolt
-4 ½” hexagon nuts
-3 ½” split lock washers
-1 3/16” steel flat plate with a 1/2" center hole
